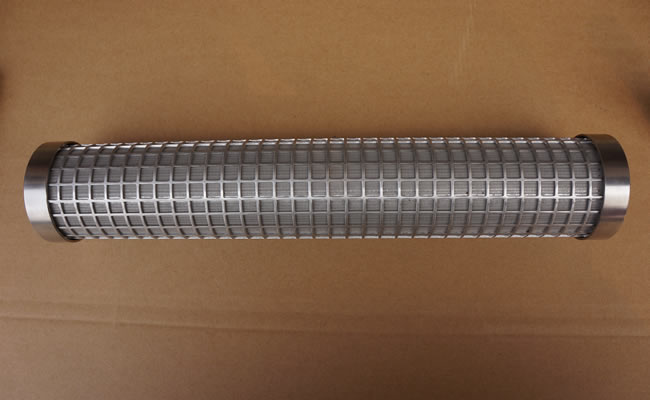

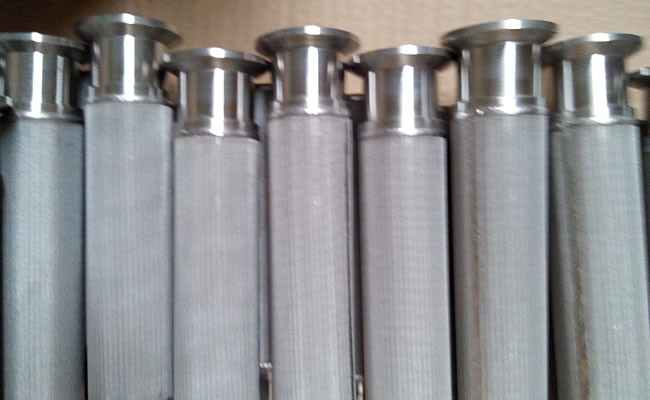

Sintered Filter Elements
Sintered mesh is a rigid structured composite consisting of multi-layers of woven wire mesh, manufactured from a special lamination design and undergoing a combination of processes such as rolling and vacuum sintering.
5-Layers sintered stainless steel mesh is our standard sintered mesh structure. Its filtration rating ranging from 5 micron to 300 microns. It can then be cut and fabricated into various discs, tubes, filter cartridges, and flat panels.
Feature: Sintered mesh can maintain the simple structure and even pore distribution characteristics of ordinary woven wire mesh. At the same time,possess high strength and good integrity,and also can maintain a stable and rigid mesh shape.the sintered mesh porous material has good permeability and excellent regeneration ability.
Material:AISI304;AISI304L; AISI316;AISI316L
Special Alloy Steel Hastelloy ,Monel ,Inconel & Titanium are acceptable base on customer's requirement
| Nominal Filtration Fineness (μm) | Protective Layer | Control Layer | Separation Layer | Reinforcing Layer | Reinforcing Layer | Thickness (mm) | Air Permeability (L/min/cm2) | Bubble Pressure (mm H2O) | Weight (kg/m2) | Porosity |
| 1 | 200 | 400 x 3000 | 200 | 12 x 64 | 64 X 12 | 1.7 | 1.81 | 360 - 360 | 5 Layers (8.4) 6 Layers (14.4) | Approx 40% |
| 2 | 100 | 325 x 2300 | 100 | 12 x 64 | 64 X 12 | 1.7 | 2.35 | 300-590 | ||
| 5 | 100 | 200 x 1400 | 100 | 12 x 64 | 64 X 12 | 1.7 | 2.42 | 260-550 | ||
| 10 | 100 | 165 x 1400 | 100 | 12 x 64 | 64 X 12 | 1.7 | 3.00 | 220-500 | ||
| 15 | 100 | 165 x 1200 | 100 | 12 x 64 | 64 X 12 | 1.7 | 3.41 | 200-480 | ||
| 20 | 100 | 165 x 800 | 100 | 12 x 64 | 64 X 12 | 1.7 | 4.50 | 170-450 | ||
| 25 | 100 | 165 x 600 | 100 | 12 x 64 | 64 X 12 | 1.7 | 6.12 | 150-410 | ||
| 30 | 100 | 400 | 100 | 12 x 64 | 64 X 12 | 1.7 | 6.86 | 120-390 | ||
| 40 | 100 | 325 | 100 | 12 x 64 | 64 X 12 | 1.7 | 7.10 | 100-350 | ||
| 50 | 100 | 250 | 100 | 12 x 64 | 64 X 12 | 1.7 | 8.41 | 90-300 | ||
| 75 | 100 | 200 | 100 | 12 x 64 | 64 X 12 | 1.7 | 8.70 | 80-250 | ||
| 100 | 100 | 150 | 100 | 12 x 64 | 64 X 12 | 1.7 | 9.10 | 70-190 | ||
| 150 | 50+100+50+30+30+100+50 | 2.0 | 25.00 | 50-150 | ||||||
| 200 | 40+80+40+20+40+80+40 | 2.0 | 26.00 | |||||||
